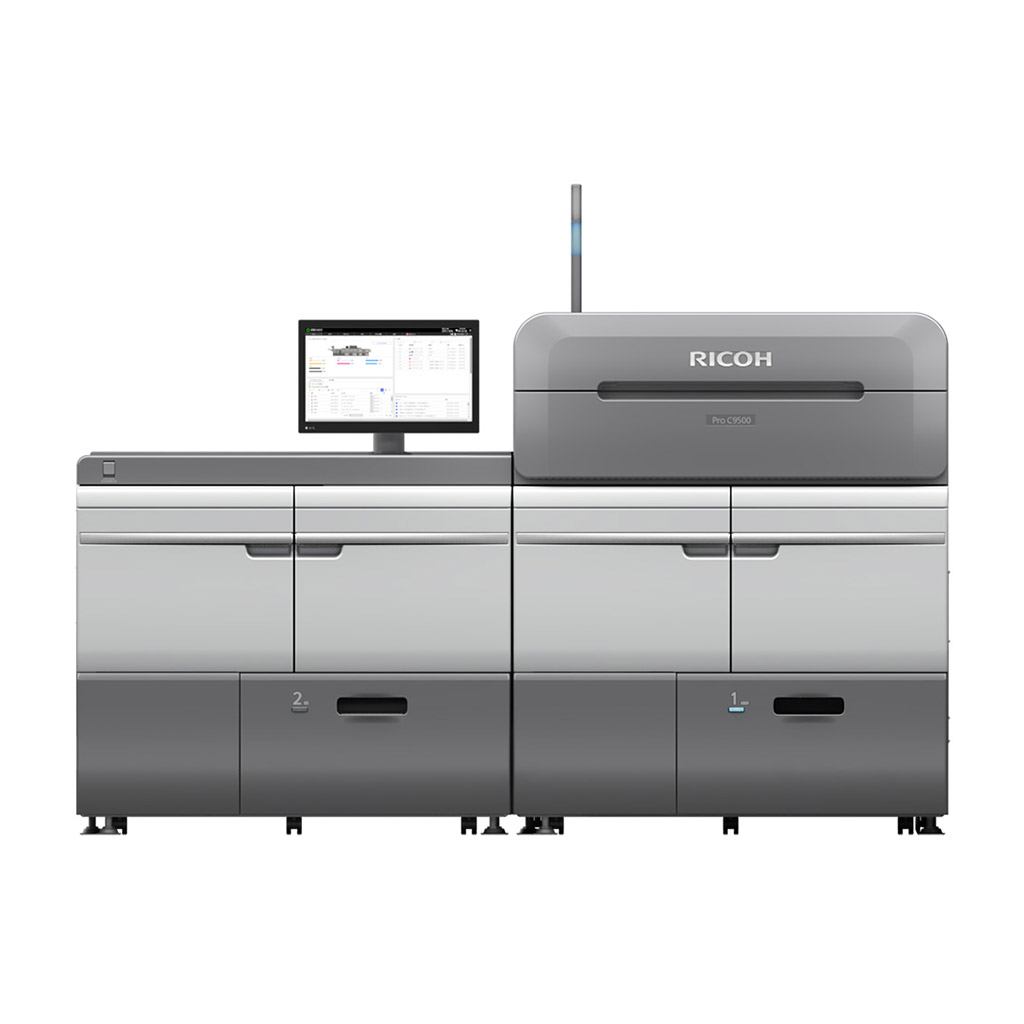

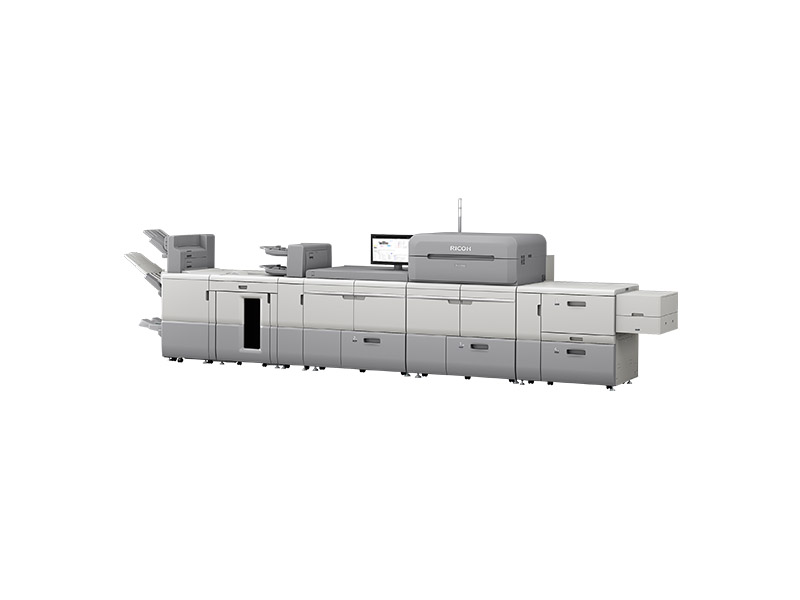

Pro C9500

Pro C9500

Pro C9500

Colour production printer
– Upgradeable to 135 ppm
– 40–470 g/m2
– 18,100-sheet max input
– RICOH GC OS controller

Category: Tag:
Download Brochure
Configure

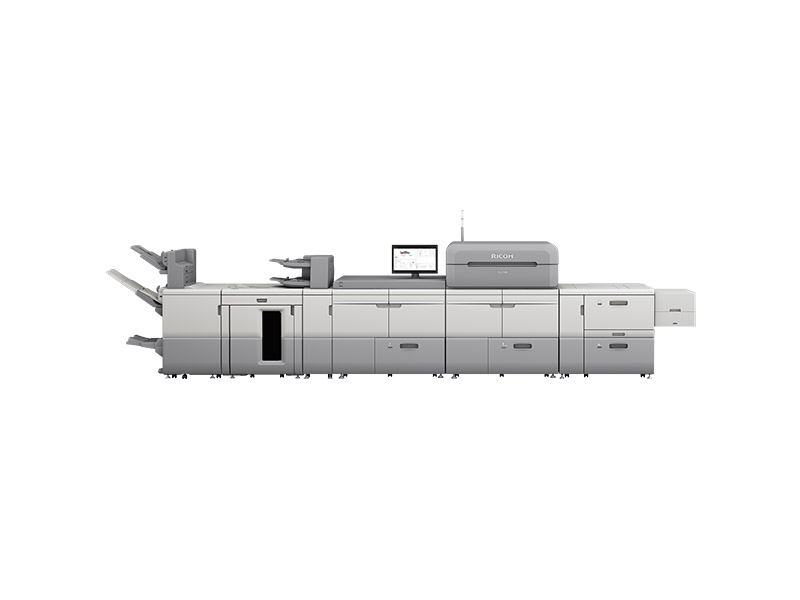

The Pro C9500 is a digital colour cutsheet printer targeted at the high volume segment of the commercial printing market.

It features a print speed of 115 ppm that can be upgraded to 135 ppm with an optional productivity upgrade unit. The printer can print on a wide range of paper from 40 g/m2  up to 470 g/m2, allowing customers expand their business offerings.

The Pro C9500 comes with a RICOH GC OS controller designed specifically for production printing, and supports new oneDFE controllers based on EFI Fiery and Ricoh technology as a  mandatory option.

Other highlights include a large 21.5” Full HD operation panel, higher quality printing and colour consistency, up to 960 mm duplex banner sheet continuous printing, and support for an improved vacuum-feed LCIT and multi-folding unit.



Overview

Applications

Quality

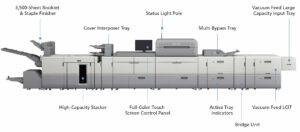

Performance

Finishing




HTML Editor – Full Version

Perfect Binders

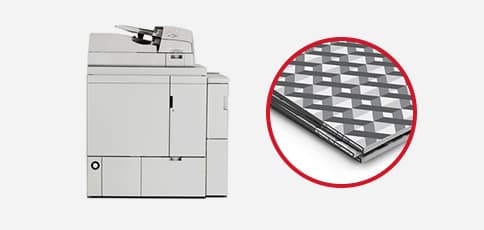

Perfect Binder GB5010

Produce professionally trimmed, glue-bound, wrap around books of up to 200-sheets with covers and weights of up to 300 gsm. This inline option is ideal for catalogs, course books, small magazines, directories, and more.

Cover Interposers

Plockmatic High Capacity Interposer HCI3500



The Plockmatic High Capacity Interposer enables the automatic and inline insertion of a wide range of paper stocks up to 350 gsm within a single booklet. Vacuum feed technology ensures that thicker stocks are fed smoothly every time. Take advantage of two trays with 3,500-sheet total paper capacity and insert color covers and inserts in black and white runs.

Cover Interposer Tray CI5040



The Cover Interposer Tray allows pre-printed covers and inserts to be easily fed into the finishing workflow from two sources. This option eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals.|Supports paper sizes up to 13" × 19.2" and media up to 130 lb. Cover (350 gsm).|Weight: 110 lbs. (50 kg)|W × D × H (inches): 13 × 28.7 × 50.8|W × D × H (mm): 330 × 729 × 1,290

Paper Handling

Multi Bypass Tray BY5020

 Feeds up to 500 sheets of uncoated paper stocks for expanded system capacity and document output types. Support for stocks up to 13" x 19.2" in size and up to 80 lb. Cover (216 gsm) in weight.|Weight: 44 lbs. (20 kg)|W × D × H (inches): 27.2 × 22.1 × 8.3|W × D × H (mm): 691 × 561 × 211

Plockmatic LCT 3500

 The Plockmatic LCT3500 Long Sheet Feeder can feed oversized sheets up to 27.5" with weights up to 400 gsm. With the optional long sheet module, sheets up to 49.6" can be fed into the system to produce long sheet applications such as trifold/gatefolds, landscape booklets, brochures and leaflets.

Stackers

High Capacity Stacker SK5040

For stacking up to 5,000 sheets of paper. Up to two stackers can be configured per engine.

Plockmatic MPS Oversize Sheet Stacker

Neatly stacks oversized output up to 49.6", reducing labor and ensuring sheets stay flat before finishing.

Sheet Finishers

4,500 Sheet Finisher SR5110

The SR5110 offers multi-position staple finishing of up to 100 sheets for 8.5" x 11" sized media or 50 sheets for 11" x 17" sized media. The unit also offers stacking of up to 4,500 sheets (dual shift tray) with 4 staple options (top, bottom, 2 staples and top-slant). Two and three hole punch is available as an optional accessory.

Booklet Makers

Booklet Finisher SR5120

The SR5120 offers multi-position staple finishing of up to 100 sheets for 8.5" x 11" sized media or 50 sheets for 11" x 17" sized media. The unit also offers stacking of up to 3,500 sheets (dual shift tray) with 4 staple options (top, bottom, 2 staples and top-slant). Two and three hole punch is available as an optional accessory.

Plockmatic PBM 5035/5035 S

These production booklet maker accessories enable production of a wide variety of booklet formats, including landscape, in up to a 140-200 page range. Choose between staple or stitch versions for added versatility depending on anticipated volumes. A rich standard feature set including face trimming and square back spine formation, and other optional accessories, make this a true production workhouse.

Cutters/Trimmers

Trimmer Unit TR5050

Trims the "creep" side of a saddle-stitched booklet for professional looking booklets. Trims up to 30 sheets based on 20 lb. Bond, equivalent to an 120-page book.|Weight: 165.3 lbs. (75 kg)|Power Requirements: 120V, 50/60Hz, 15A|W × D × H (inches): 30.7 × 23.3 × 21.9|W × D × H (mm): 780 × 592 × 556

Other

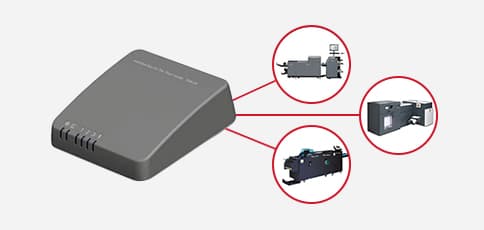

RPIP Interface Port Type S3

Enable the inline connectivity of select third party finishing peripherals. This powerful solution greatly enhances your workflow, reduces labor time, and maximizes the value of traditional offline finishing equipment. Connect inline to the following finishing options: CP Bourg Booklet Maker BM-e, CP Bourg Watkiss PowerSquare™ 224, DSF-2000 Sheet Feeder and DBM-350 Booklet Maker

GBC StreamWire

A fully automated inline binding system for creating twin loop wire-bound booklets. StreamWire Spools are available in 3 Colors (Black, White and Silver) and in 5 different sizes.


Specifications



  • Configuration

    Functions Print
    Colour Yes
    Printer controller - standard RICOH GC OS
    Printer controller - optional Color Controller N-50 Color Controller N-70
    Operation panel 21.5" Full HD touchscreen
  • Physical dimensions
    Physical dimensions (WxDxH)—mainframe 2,520 x 990 x 1,500 mm
    Physical dimensions (WxDxH)—other 2,520 x 990 x 1,870 mm—mainframe with Attention Light
    1,054 x 730 x 1,000 mm—Vacuum-Feed LCIT RT5150
    1,290 x 730 x 1,000 mm—Vacuum-Feed LCIT RT5150 with Vacuum-Feed Banner Sheet Tray Type S9 attached
    1,519 x 730 x 1,000 mm—Vacuum-Feed LCIT RT5150 with Extension Vacuum-Feed Banner Sheet Tray Type S14 attached
    330 x 730 x 1,000 mm—Bridge Unit BU5010
    690 x 561 x 210 mm—Multi-Bypass Tray BY5020
    1,290 x 730 x 1,000 mm—Vacuum-Feed Banner Sheet Tray Type S9
    1,290 x 730 x 1,302 mm—Vacuum-Feed Banner Sheet Tray Type S9, with cover open
    1,519 x 730 x 1,000 mm—Extension Vacuum-Feed Banner Sheet Tray Type S14, when attached to Vacuum-Feed LCIT RT5150
    1,090 x 561 x 210 mm—Multi-Bypass Banner Sheet Tray Type S9, when attached to Multi-Bypass Tray BY5020
    730 x 1,220 x 1,090 mm—Plockmatic LCT3500 2.0
    1,113 x 730 x 1,490 mm—Finisher SR5110
    1,334 x 730 x 1,622 mm—Finisher SR5110 with SR5000 Series Output Tray for Banner Sheet Type S6
    1,876 x 730 x 1,617 mm—Finisher SR5110 with Extension Output Banner Sheet Tray Type S14  (installed on the upper tray)
    1,926 x 730 x 1,617 mm—Finisher SR5110 with Extension Output Banner Sheet Tray Type S14  (installed on the lower tray)
    1,113 x 730 x 1,490 mm—Booklet Finisher SR5120
    1,334 x 730 x 1,622 mm—Booklet Finisher SR5120 with SR5000 Series Output Tray for Banner Sheet Type S6
    1,876 x 730 x 1,617 mm—Booklet Finisher SR5120 with Extension Output Banner Sheet Tray Type S14  (installed on the upper tray)
    1,926 x 730 x 1,617 mm—Booklet Finisher SR5120 with Extension Output Banner Sheet Tray Type S14  (installed on the lower tray)
    1,115 x 591 x 555 mm—Trimmer Unit TR5050
    740 x 730 x 1,350 mm—Cover Interposer CI5040
    209 x 730 x 1,000 mm—Multi-Folding Unit FD5030
    900 x 730 x 1,010 mm—High-Capacity Stacker SK5040
    1,200 x 700 x 1,100 mm—Plockmatic High-Capacity Stacker HCI3500
    900 x 680 x 1,060 mm—Plockmatic Multi-Purpose Stacker MPS1260
    1,420 x 700 x 970 mm—Plockmatic PBM 5035S/PBM 5035, including stacker
    Weight—mainframe 1,100 kg or less
    Weight—other 230 kg or less—Vacuum-Feed LCIT RT5150
    40 kg or less—Bridge Unit BU5010
    20 kg or less—Multi-Bypass Tray BY5020
    9 kg or less—Vacuum-Feed Banner Sheet Tray Type S9
    23 kg or less—Extension Vacuum-Feed Banner Sheet Tray Type S14
    9.5 kg or less—Multi-Bypass Banner Sheet Tray Type S9
    250 kg—Plockmatic LCT3500 2.0
    135 kg—Finisher SR5110
    160 kg—Booklet Finisher SR5120
    75 kg—Trimmer Unit TR5050
    60 kg—Cover Interposer CI5040
    45 kg or less—Multi-Folding Unit FD5030
    131 kg or less—High-Capacity Stacker SK5040
    135 kg or less—High-Capacity Stacker SK5040 with roll-away cart
    250 kg—Plockmatic High-Capacity Stacker HCI3500
    65 kg—Plockmatic Multi-Purpose Stacker MPS1260 lift unit
    5 kg—Plockmatic Multi-Purpose Stacker MPS1260 docking unit
    Minimum space requirements 1,000 mm—front
    1,000 mm—left
    1,000 mm—right
    800 mm—rear
  • Reliability
     Average monthly volume  115 ppm—251,000 prints (A4), 159,000 prints (click); 135 ppm—460,000 prints (A4), 304,000 prints (click)
     Max monthly volume  1,000,000 prints
     Machine life  60,000,000 prints or 5 years, whichever comes first
     Duty cycle  115 ppm—2,250,000 prints; 135 ppm—2,600,000 prints
     Colour ratio  80%
  • Supply yields
    Supply yields 69,000 sheets—black

    75,500 sheets—cyan
    73,200 sheets—magenta
    64,800 sheets—yellow

    230,000 sheets per waste toner bottle

    5,000 staples per Type X cartridge for Finisher SR5110 and Booklet Finisher SR5120—side staple
    5,000 staples per Type U cartridge for Booklet Finisher SR5120—saddle stitch staple
    5,000 staples per Type X refill cartridge for Finisher SR5110 and Booklet Finisher SR5120—side staple
    5,000 staples per Type T refill cartridge for Booklet Finisher SR5120—saddle stitch staple

    Note: Toner yields measured with the A4/8.75% coverage chart with 150 pages per job. Waste toner bottle yield measured with A4/8.75% coverage chart with 150 pages per job and 80% colour ratio.
  • Media Handling
    Standard input capacity (sheets) 4,400
    Maximum input capacity (sheets) 18,100
    Maximum output capacity (sheets) 13,000
    Paper input configuration - standard 2,200-sheet paper input tray x 2
    Paper input configuration - optional 4,400-sheet Vacuum-Feed LCIT RT5150, Bridge Unit BU5010, 500-sheet Multi-Bypass Tray BY5020, 730-sheet Vacuum-Feed Banner Sheet Tray Type S9, 500-sheet Extension Vacuum-Feed Banner Sheet Tray Type S14, 500-sheet Multi-Bypass Banner Sheet Tray Type S9, 3,500-sheet Plockmatic LCT3500
    Paper output configuration - optional Multi-Folding Unit FD5030, High-Capacity Stacker SK5040, 3,500-sheet Booklet Finisher SR5120, 4,500-sheet Finisher SR5110, Punch Unit PU5030, Trimmer Unit TR5050 for Booklet Finisher SR5120, 400-sheet Cover Interposer CI5040
    Paper output configuration - 3rd Party GBC e-Wire, GBC StreamPunch Plus, Plockmatic HCI3500 High-Capacity Interposer, Plockmatic CT XL, Plockmatic PBM350e, Plockmatic MPS1260 Multi-Purpose Stacker, Plockmatic PBM5035S long sheet stitcher, Plockmatic 5035 long sheet stapler, Plockmatic SBT (Square Back Trimmer), Plockmatic RCT v.3.0
    Supported media

    Standard paper input trays 1 and 2
    Plain, Recycled, Prepunched Paper, Transparency, Tab Stock, Translucent Paper, Label Paper, Coated: High Gloss, Coated: Glossy, Coated: Matte, Envelope, Textured Paper, Tab Stock: Glossy, Tab Stock: Matte, Tab Stock: High Gloss, Envelope: Glossy, Envelope: Matte, Envelope: High Gloss, Carbonless Paper

    Note: Magnetic Paper, Metallic/Pearl Paper, Clear File Folder, and Synthetic Paper can be fed but quality is not guaranteed.

    Bypass tray
    Plain, Recycled, Prepunched Paper, Transparency, Tab Stock, Translucent Paper, Envelope

    Note: High Gloss, Coated: Glossy, Coated: Matte, Textured Paper, and Synthetic Paper can be fed but quality is not guaranteed.

    Optional Vacuum-Feed LCIT RT5150
    Plain, Recycled, Prepunched Paper, Transparency, Tab Stock, Translucent Paper, Label Paper, Coated: High Gloss, Coated: Glossy, Coated: Matte, Envelope, Textured Paper, Tab Stock: Glossy, Tab Stock: Matte, Tab Stock: High Gloss, Envelope: Glossy, Envelope Matte, Envelope: High Gloss, Carbonless Paper

    Note: Magnetic Paper, Metallic/Pearl Paper, Clear File Folder, and Synthetic Paper can be fed but quality is not guaranteed.

    Optional banner sheet tray
    Plain, Recycled, Prepunched Paper, Coated: High Gloss, Coated: Glossy, Coated: Matte, Textured Paper, Carbonless Paper

    Note: Transparency, Translucent Paper, Label Paper, Magnetic Paper, Metallic/Pearl Paper, and Synthetic Paper can be fed but quality is not guaranteed.
    Maximum paper size 13" x 19.2"
    Media weight (g/m2) 40–470
    Limitless paper supply  Supported

  • Connectivity
    Interfaces - standard 10Base-T/100Base-Tx (Ethernet)
    1000Base-T (Gigabit Ethernet)—for TotalFlow Advisor connection
    2.5GBase-T—for Fiery controller connection
    SD slot x 2— for maintenance only
    USB 3.0 x 4, USB 2.0 x 2
    Interfaces - optional  With Color Controller N-50

    10Base-T/100Base-Tx (Ethernet)
    1000Base-T (Gigabit Ethernet)
    USB 2.0 x 4—rear
    USB 3.0 x 5—2 ports on the rear, 3 ports on the Fiery Quick Touch operation panel



    With Color Controller N-70
    10Base-T/100Base-Tx (Ethernet)
    1000Base-T (Gigabit Ethernet)
    USB 3.0 x 7—rear USB 3.0 x 4 ports, x3 ports on the Fiery Quick Touch operation panel
    Network protocols - standard TCP/IP (IPv4, IPv6)
    Network protocols - optional With Color Controller N-50/N-70
    Windows—TCP/IP
    Mac—TCP/IP, EtherTalk, Bonjour
  • Print features
    Print speed colour 115 ppm—A4 62 ppm—A3With optional Productivity Upgrade Unit Type S15 135 ppm—A4 75 ppm—A3
    Print speed black and white 115 ppm—A4 62 ppm—A3With optional Productivity Upgrade Unit Type S15 135 ppm—A4 75 ppm—A3
    First print time 115 ppm—24 seconds; 135 ppm—22 seconds
    Printing process 4-drum dry electrostatic transfer system with internal transfer belt
    Printing technology Vertical-cavity surface-emitting laser (VCSEL)
    Fusing Oil-less belt-fusing method
    Toner development PXP-EQ chemical toner, polymerisation
    Print resolution 2,400 x 4,800 dpi Note:Engine print resolution is 1,200 x 4,800 dpi.
    Duplex printing Standard
    Envelope printing Supported
    Maximum printable area 326 x 1,255 mm
    Optional printer controller Color Controller N-50 and Color Controller N-70 System Fiery FS500 Pro Base operating system Windows 10 IoT Enterprise 2019 LTSC CPU Intel i5-8500—N-50 Intel Xeon 4214 (Silver)—N-70 HDD 256 GB SSD SATA for OS;1 TB HD SATA for data—N-50 480 GB SSD SATA for OS;2 TB HD x 2 SATA for data—N-70
    Memory (RAM)
    8 GB—N-50 32 GB—N-70 Interfaces Gigabit cross cable Ricoh data transfer unit cable
    Other print features Optional Auto Color Diagnosis Unit and Image Quality Monitor
  • Security features
    Other security features The OneDFE controller security is based on the EFI Fiery security policy that is compliant with the FS500 Pro system. Contact your local sales company for more information.
  • Software and solutions
    Standard  @Remote
    TotalFlow Adviser
    Optional InfoPrint Manager
    Ricoh ProcessDirector
    TotalFlow Prep
    TotalFlow Production Manager
    TotalFlow BatchBuilder
    RICOH Supervisor
    TotalFlow Producer
    FusionPro VDP Creator
    FusionPro Expression
    Ricoh Auto Color Adjuster
    OL PlanetPress Connect
    Fiery Workflow Suite
  • Environmental features
    Power source 220–240 V, 50/60 Hz
    Power consumption 9,000 W or less—maximum power
    Power consumption—options 1,000 W or less—Vacuum-Feed LCIT RT5150
    150 W or less—Finisher SR5110
    150 W or less—Booklet Finisher SR5120
    250 W or less, maximum—Trimmer Unit TR5050
    75 W or less, average—Trimmer Unit TR5050
    110 W excluding peak consumption—Cover Interposer CI5040
    Warm-up time 540 seconds or less—mainframe
    Sound power level Mainframe
    73.5 dB or less—standby
    81.5 dB or less—operating
    Reduction of environmentally sensitive materials RoHS
    Less than 0.1 wt%—Lead, PVC, Hexavalent chromium, Cadmium, PBB/PBDE, DEHP, DBP, BBP, DIBP
    Energy saving standards

    Energy Star 3.2—with OneDFE controller
    Safety standards EN60950-1
    IEC60950-1
    KC 62368-1
    CNS 15998-1
    Electromagnetic Compatibility (EMC) standards EN55032 Class A
    EN61000-3-2
    EN61000-3-3
    EN55035
    EN62311
    KS C 9832
    KS C 9835
    KS C 9610-4-2
    KS C 9610-4-3
    CNS15936 Class A
    Identification of plastic components All plastic components that weigh more than 100 g are identified in accordance with ISO 11469 standards.
    Laser standards EN60825-1
    IEC60825-1

Related products

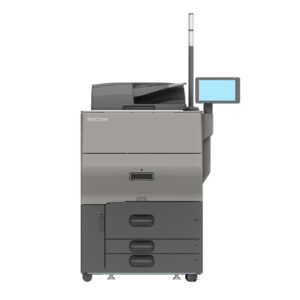

  • Pro C5300S

    Pro C5300S

    Colour production printer
    – Prints up to 65 ppm
    – Up to 360 g/m2 duplex
    – Up to 13″ x 19.2″ paper size
    – High-end finishers

  • Pro C7500
    New!

    Pro C7500

    Colour production printer
    – Upgradeable to 95 ppm
    – 40–470 g/m2
    – 16,200-sheet max input
    – Optional special colour printing

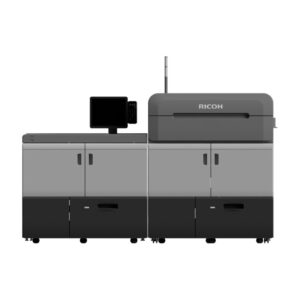

  • Pro C9200 Graphic Arts Edition
