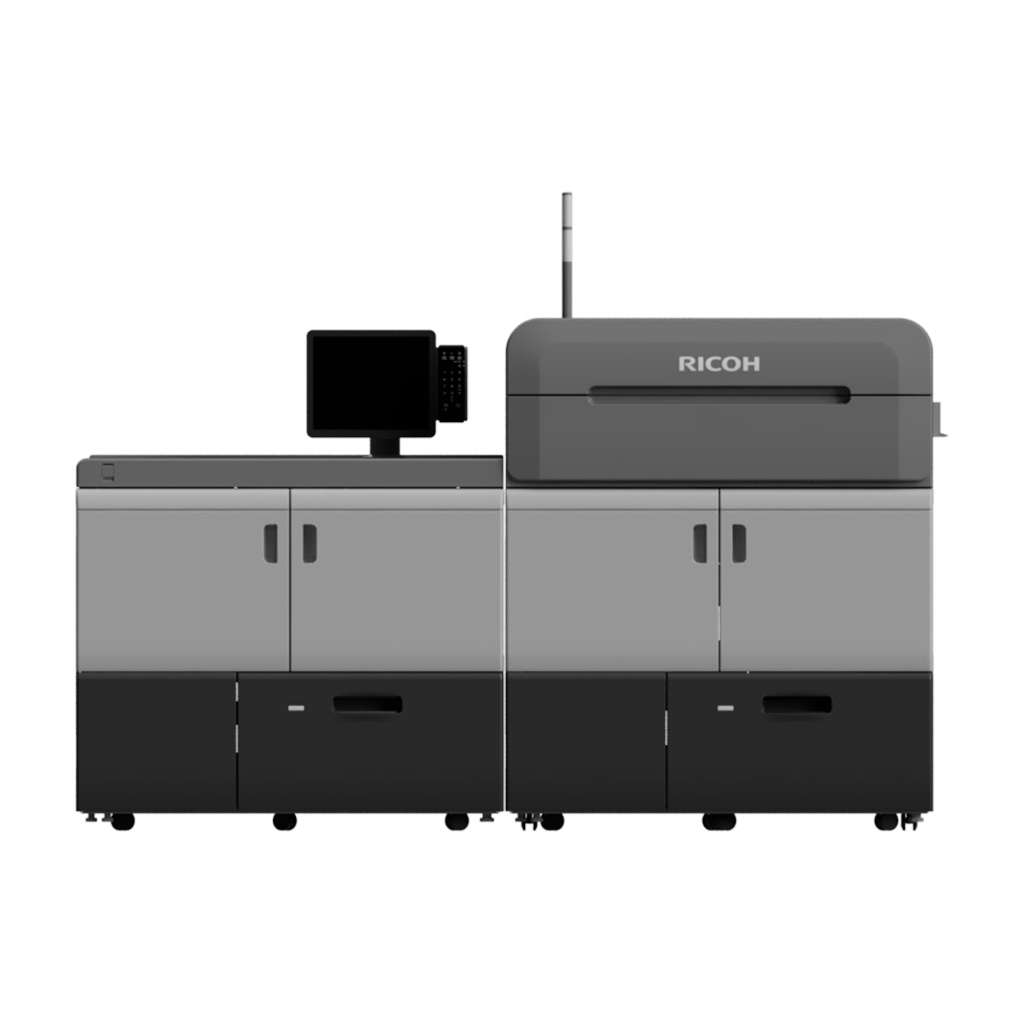

Pro C9200 Graphic Arts Edition

Pro C9200 Graphic Arts Edition

Pro C9200 Graphic Arts Edition

Standard inclusions
– 17″ operation panel
– Up to 13″ x 19.2″ paper size
– Up to 470 g/m2 paper
– 1,030 mm banner paper duplex
– 320 GB HDD
– Auto colour calibration

Category:
Download Brochure
Configure

The Pro C9200 Graphic Arts Edition is a heavy volume digital colour cutsheet production device, which provides print functionality as standard.

It features a print speed of 115 ppm and has the ability to print on a wide variety of media up to 470 g/m2, delivering high-quality output, increased productivity, and reliability at an affordable price.

The Pro C9200 Graphic Arts Edition features a standard GWNX controller, however printing is controlled using an optional Fiery E-46 or Fiery E-86 controller. It also supports the optional Ricoh TotalFlow Print Server R-62 to help you transition between offset and digital workflows seamlessly, from a single user interface.

It also comes with automatic colour calibration, a large 17” operation panel, banner sheet duplex printing up to 1,030 mm, real-time registration adjustment, and high-end finishers with larger stack capacities.

The Pro C9200 Graphics Arts Edition is especially suited for large commercial printers seeking to enter the digital colour production space or those looking to expand their hybrid offset-printing and digital operations.



Features & Benefits

The Pro C9200 systems can be tailored to meet all your production needs. With a modular concept you can add a variety of inline feed and finishing options to meet your workflow demands. Enhanced options further expand the variety of inline professional application capabilities. In a busy print environment, a versatile and productive platform can be the difference between success and failure. Printing onto a wide variety of media Ricoh’s latest flagship digital sheet fed press, the Pro C9200 Series, delivers astonishing quality at an express speed.

Bridging the gap between offset and digital processes, they enable users to print high quality digital print collateral more quickly and more affordably.

  • Print quality that is comparable to offset.
  • Full engine speed maintained at all media weights up to 470gsm.
  • Auto duplex on long sheets up to 1030mm and 1260mm in simplex.
  • Extensive media support includes substrates such as textured, envelopes, and translucent stocks.
  • Modular configuration to suit your needs.
  • New inline finishing allows you a wider variety of booklet applications.

Specification



  • Configuration
    Functions Print
    Colour Yes
    Printer controller - standard GWNX—embedded
    Printer controller - optional EFI Fiery colour controller E-46
    EFI Fiery colour controller E-86
    Ricoh TotalFlow Print Server R-62
    HDD 320 GB
    CPU 1.06 GHz
    Memory - standard 1 GB
    Operation panel 17-inch LCD touch screen operation panel
  • Physical dimensions
    Physical dimensions (WxDxH)—mainframe 2,520 x 990 x 1,500 mm
    Physical dimensions (WxDxH)—other 2,520 x 990 x 1,870 mm—mainframe with status pole
    1,054 x 730 x 1,000 mm—4,400-sheet vacuum-feed LCT RT5120
    1,290 x 730 x 1,000 mm—4,400-sheet vacuum-feed LCT RT5120 with banner sheet option attached
    330 x 730 x 1,000 mm—Bridge unit BU5010
    690 x 561 x 210 mm—500-sheet multi-bypass tray BY5020
    1,290 x 730 x 1,000 mm—730-sheet vacuum-feed banner sheet tray Type S9
    1,290 x 730 x 1,302 mm—730-sheet vacuum-feedbanner sheet tray Type S9, when cover is open
    1,090 x 561 x 210 mm—500-sheet multi-bypass banner sheet tray Type S9, when attached to multi-bypass tray BY5020
    1,688 x 1,286 x 950 mm—BDT VX 370-1280 banner sheet feeder
    730 x 1,220 x 1,090 mm—Plockmatic LCT3500
    996 x 730 x 1,126 mm—3,000-sheet finisher SR5050, with all extendable trays closed
    996 x 730 x 1,126 mm—2,500-sheet booklet finisher SR5060, with all extendable trays closed
    1,115 x 591 x 555 mm—Booklet trimmer TR5040
    1,113 x 730 x 1,490 mm—4,500-sheet finisher SR5110
    1,113 x 730 x 1,490 mm—3,500-sheet booklet finisher SR5120
    1,115 x 591 x 555 mm—Trimmer unit TR5050
    740 x 730 x 1,290 mm—Cover interposer CI5040
    870 x 730 x 1,010 mm—Ring Binder RB5020
    540 x 730 x 1,290 mm—2-tray cover interposer CI5030
    470 x 730 x 1,000 mm—Multi-folding unit FD5020
    1,090 x 791 x 1,387 mm—Perfect Binder GB5010
    1,114x 1,048 x 1,178 mm—High-capacity stacker SK5040
    1,200 x 700 x 1,100 mm—Plockmatic high-capacity stacker HCI3500
    900 x 680 x 1,060 mm—Plockmatic multi-purpose stacker MPS1260
    1,420 x 700 x 970 mm—Plockmatic PBM 5035S/PBM 5035, including stacker
    265 x 253 x 136 mm—RPIP interface box Type S3
    Weight—mainframe 1,076 kg or less
    Weight—other 230 kg or less—4,400-sheet vacuum-feed LCT RT5120
    40 kg or less—Bridge unit BU5010
    20 kg or less—500-sheet multi-bypass tray BY5020
    9 kg or less—730-sheet vacuum-feed banner sheet tray Type S9
    9.5 kg or less—Multi-bypass banner sheet tray Type S9
    443 kg—BDT VX 370-1280 banner sheet feeder
    250 kg—Plockmatic LCT3500
    112 kg or less—3,000-sheet finisher SR5050
    112 kg or less—2,500-sheet booklet finisher SR5060
    75 kg or less—Booklet trimmer TR5040
    135 kg or less—4,500-sheet finisher SR5110
    160 kg or less—3,500-sheet booklet finisher SR5120
    75 kg—Trimmer unit TR5050
    50 kg—Cover interposer CI5040
    140 kg or less—Ring Binder RB5020
    45 kg or less—2-tray cover interposer CI5030
    92 kg or less—Multi-folding unit FD5020
    350 kg or less—Perfect Binder GB5010
    131 kg or less—High-capacity stacker SK5040
    250 kg—Plockmatic high-capacity stacker HCI3500
    65 kg—Plockmatic multi-purpose stacker MPS1260 lift unit
    5 kg—Plockmatic multi-purpose stacker MPS1260 docking unit
    0.55 kg or less—RPIP interface box Type S3
    Minimum space requirements

    1,000 mm—front
    1,000 mm—left
    1,000 mm—right
    800 mm—rear

    Note:PM parts maintenance tasks require additional rear clearance.
  • Reliability
    Average monthly volume 350,000 prints—A4
    200,000 prints—click
    Max monthly volume 1,000,000 prints
    Max volume statement 100,000–650,000 prints per month—recommended document volume
    Machine life 60,000,000 prints or 5 years, whichever comes first
    Duty cycle 1,750,000 prints
    Colour ratio 80%
  • Supply yields
    Supply yields 59,800 sheets per 1,482g black toner bottle 60,500 sheets per 1,482 g cyan, magenta, and yellow bottle 220,000 sheets per waste toner bottle 5,000 staples per Type M cartridge for finisher SR5050 and SR5060—normal staple 5,000 staples per Type Ucartridge for finisher SR5060—saddle stitch staple 5,000 staples perType M refill cartridge for finisher SR5050 and SR5060—normal staple 5,000 staples per Type Trefill cartridge for finisher SR5060—saddle stitch staple 52 sets x 5 per 100-ring carton—260 booklets/carton 66 sets x 5 per 50-ring carton—330 booklets/carton Note:Toner yields measured with the A4/8.75% coverage chart with 150 pages per job.Waste toner bottle yield measured with A4/8.75% coverage chart with 150 pages per job and 80% colour ratio.
  • Media Handling
    Standard input capacity (sheets) 4,400
    Maximum input capacity (sheets) 18,100
    Maximum output capacity (sheets) 13,000
    Paper input configuration - standard 2,200-sheet paper input tray x 2, duplex unit
    Paper input configuration - optional 4,400-sheet vacuum-feed LCT RT5120, Multi-bypass attachment kit for vacuum-feed LCT Type S9,500-sheet multi-bypass tray BY5020, 730-sheet vacuum-feed banner sheet tray Type S9, 500-sheet multi-bypass banner sheet tray Type S9, Bridge unit BU5010,BDT VX 370-1280 banner sheet feeder, Plockmatic LCT3500
    Paper output configuration - optional 3,000-sheet finisher SR5050, 2,500-sheet booklet finisher SR5060, 2 tray cover interposer CI5030, Booklet trimmer TR5040, Ring Binder RB5020, Perfect Binder GB5010, Multi-folding unit FD5020, High-capacity stacker SK5040, Punch unit PU5020,3,500-sheet booklet finisher SR5120, 4,500-sheet finisher SR5110, Punch unit PU5030, Trimmer unit TR5050 for booklet finisher SR5120, Cover interposer CI5040
    Paper output configuration - 3rd Party GBC StreamPunch Ultra, Plockmatic booklet maker PBM 350/PBM 500, Plockmatic high-capacity interposer HCI3500,Plockmatic multi-purpose stacker MPS1260,Plockmatic PBM 5035S long sheet stitcher, Plockmatic PBM 5035 long sheet stapler
    Supported media

    Standard paper input trays 1 and 2
    Plain paper, coated paper (glossy and matte), recycled paper, pre printed, letterhead, pre-punched, tab stock1, OHP transparency, translucent paper, envelope, textured paper, label paper, NCR paper

    Note:Metallic paper, synthetic paper, water resistant paper, and magnetic paper can be fed but support is not guaranteed.

    Vacuum-feed LCT RT5120
    Plain paper, coated paper (glossy and matte), recycled paper, pre printed, letterhead, pre-punched, tab stock1, OHP transparency, translucent paper, envelope, textured paper, label paper, NCR paper

    Note:Metallic paper, synthetic paper, water resistant paper, and magnetic paper can be fed but support is not guaranteed.

    Vacuum-feed banner sheet tray Type S9
    Plain paper, coated paper (glossy and matte), recycled paper, pre printed, letterhead, textured paper

    Note:Pre-punched, tab stock1, OHP transparency, translucent paper, metallic paper, synthetic paper, water resistant paper, magnetic paper, and label paper can be fed but support is not guaranteed.

    Multi-bypass tray BY5020
    Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock1, translucent paper, envelope

    Note:Coated, textured paper, and synthetic paper can be fed but support is not guaranteed.

    Duplex unit
    Plain paper, coated paper (glossy and matte), recycled paper, pre printed, letterhead, pre-punched, OHP transparency, textured paper, synthetic paper, metallic paper

    Plockmatic LCT3500
    Plain paper, index paper, coated paper, recycled paper

    ¹—Tab fence is needed when printing tab stock
    Maximum paper size 13" x 19.2"
    Media weight (g/m2) 52–470
    Limitless paper supply Supported
  • Connectivity
    Interfaces - standard 10Base-T/100Base-Tx (Ethernet) 1000Base-T (Gigabit Ethernet)—for Fiery controller connection SD slot x 3—2 ports on rear, 1 port on the operation panel USB host x 3—2 ports on rear, 1 port on the operation panel
    Interfaces - optional RPIP interface box Type S3 With Fiery controller 10Base-T/100Base-Tx (Ethernet) 1000Base-T (Gigabit Ethernet) USB 2.0 x 2—rear USB 3.0 x 5—3 ports in Fiery Quick Touch, 2 ports on the rear
    Network protocols - standard TCP/IP (IPv4, IPv6)
    Network protocols - optional With Fiery controller TCP/IP (IPv4, IPv6), SMB
  • Print features
    Print speed colour 115 ppm—A4 62 ppm—A3 57 ppm—SRA3, 12" x 18" 32 ppm—700 mm 16 ppm—1,260 mm
    Print speed black and white 115 ppm—A4 62 ppm—A3 57 ppm—SRA3, 12" x 18" 32 ppm—700 mm 16 ppm—1,260 mm
    First print time 24 seconds
    Productivity 100%—A3
    Printing process 4-drum dry electrostatic transfer system with internal transfer belt
    Printing technology Vertical-cavity surface-emitting laser (VCSEL)
    Fusing Oil-less belt-fusing method
    Toner development PXP-EQ chemical toner, polymerisation
    Print resolution 2,400 x 4,800 dpi
    Printer drivers PCL 6, PostScript 3—optional with Fiery
    Duplex printing Standard
    Envelope printing Supported—Tray 1, Tray 2, Vacuum-feed LCT RT5120, Multi-bypass tray BY5020
    Maximum printable area 326 x 1,255 mm—full bleed on 3 edges except leading edge 323 x 700 mm—image quality guaranteed Blank margin—uncoated media Leading edge: 7.0 +/- 0.5 mm1 4.0 +/- 0.5 mm2 2.5 +/- 0.5 mm3 Trailing edge: 7.0 +/- 0.5 mm1 4.0 +/- 0.5 mm2 2.5 +/- 0.5 mm3 Blank margin—coated media Leading edge: 7.0 +/- 0.5 mm1 4.0 +/- 0.5 mm2 3.5 +/- 0.5 mm3 Trailing edge: 7.0 +/- 0.5 mm1 4.0 +/- 0.5 mm2 3.5 +/- 0.5 mm3 1—Thick 1–4 2—Thick 5–7 3—Thick 8–9
    Fiery controller EFI Fiery colour controller E-46 and E-86—optional The print features are provided via the external EFI Fiery E-46 or Fiery E-86 controller. System version Fiery E-46 Fiery PS350 Pro Fiery E-86 Fiery PS350 Premium Configuration External Page Description Languages (PDLs) PCL 6, PostScript 3—CPSI v3020 and APPE v4.4 Print resolution 1,200 x 1,200 dpi, 2-bit Printer driver fonts 80 fonts—PCL 136 fonts + 2MM—PostScript 3 Fiery menu via operation panel Supported 2-character controller panel Supported—for technical service use Supported file formats PS, PDF, EPS, TIFF, PDF/VT, PPML, VPS, PCL—Fiery E-46 PS, PDF, EPS, TIFF, PDF/VT, PPML, VPS—Fiery E-86 Variable Data Printing (VDP) PPML v3 Fiery FreeForm v1 and 2.1 PDF/VT-1 and PDF/VT-2 Note:Creo VPS is available from EFI but not supported by Ricoh.
    TotalFlow TotalFlow Print Server R-62—optional
    Other print features Optional Auto Colour Diagnosis Unit and Image Quality Monitor
  • Security features
    Encryption Encryption—print
    Authentication Simple network security setting
    DHCP option 60 and 77
    Other security features Security features are based on the GWNX security policy, which is compliant with the latest Ricoh security specifications. The EFI Fiery E-46 and Fiery E‑86 controller security is based on the EFI Fiery security policy that is compliant with the Fiery FS350 system. Refer to your local sales company for more information.
  • Supported operating environments
    Other supported environments

    Fiery

    Windows operating system
    These Windows versions (with latest service packs) are supported for printer drivers and Fiery applications:
    Windows Vista—Home Basic, Home Premium, Ultimate, Business, Enterprise
    Windows 7—Home Premium, Professional, Ultimate
    Windows 8.1—Windows 8.1, Pro, Enterprise
    Windows 10—Home, Pro, Enterprise, Education
    Windows Server 2008—Standard, Enterprise
    Windows Server 2008 R2, 64-bit—Foundation Standard, Enterprise
    Windows Server 2012, 64-bit—Foundation, Essentials, Standard
    Windows Server 2012 R2,64-bit—Foundation, Essentials, Standard
    Windows Server 2016,64-bit—Standard, Essentials, MultiPoint, Premium Server

    Macintosh operating system
    These Mac OS versions are supported for printer drivers:
    Mac OS v10.6, v10.7, v10.8, v10.9, v10.10, v10.11, v10.12

    HDD—for printing and utilities except Command WorkStation
    Windows—1 GB free space (2 GB recommended)
    Mac OS X—500 MB free space (1 GB recommended)

    Memory (RAM)—for printing and utilities except Command WorkStation
    Windows—500 MB (2 GB recommended)
    Mac OS X—500 MB (1 GB recommended)

    Networking protocols
    Windows—TCP/IP
    Mac OS X—TCP/IP, Bonjour

    WebTools
    Windows—Internet Explorer 11 or later, Firefox 48 or later, Chrome 52 or later, Microsoft Edge for client computers running Windows 10
    Mac OS—Safari 8 or later, Firefox 48 or later, Chrome 52 or later

    Note:Microsoft releases frequent updates to Internet Explorer. Because support cannot be guaranteed for all versions, use the versions specified for best results.

    Command WorkStation
    Windows:
    1.0 GHz or greater Pentium 4 processor
    1 GB RAM or more
    16 GB HDD space free
    A monitor that supports 16-bit colour at a minimum resolution of 1,024 x 768 pixels
    TCP/IP networking protocol installed

    Mac OS X:
    Safari 8 or later, Firefox 48 or later, Chrome 52 or later
    4 GB RAM or more
    7 GB HDD space free

    Fiery Job Master (Impose and Compose) on Command WorkStation
    In addition to requirements for Command WorkStation:
    Licence activation for every client workstation
    Acrobat/PitStop software
    Supported languages With Fiery controller
    Print, PCL 6, PostScript 3
    English, German, French, Italian, Spanish, Dutch, Czech, Polish, Russian, Turkish, Simplified Chinese, Korean, Brazilian Portuguese
  • Software and solutions
    Standard @Remote Embedded Web Image Monitor Device SDK
    Optional Device Manager NX InfoPrint Manager TotalFlow BatchBuilder TotalFlow Prep TotalFlow Production Manager TotalFlow Supervisor Ricoh ProcessDirector FusionPro VDP Creator FusionPro Expression OL PlanetPress Connect PrintShop Mail EFI Digital StoreFront EFI Fiery Central EFI JobFlow EFI Impose & Compose
  • Environmental features
    Power source 220–240 V, 50/60 Hz, less than 60 A
    Power consumption 9,000 W or less—maximum power
    4 W or less—Energy Saver Mode (Sleep Mode)
    Power consumption—options 350 W—Fiery E-46 controller
    600 W—Fiery E-86 controller
    1,000 W or less—4,400-sheet vacuum feed LCT RT5120
    150 W or less—3,000-sheet finisher SR5050
    150 W or less—2,500-sheet booklet finisher SR5060
    250 W or less, maximum—Booklet trimmer TR5040
    75 W or less, average—Booklet trimmer TR5040
    150 W or less—4,500-sheet finisher SR5110
    150 W or less—3,500-sheet booklet finisher SR5120
    250 W or less, maximum—Trimmer unit TR5050
    75 W or less, average—Trimmer unit TR5050
    95 W excluding peak consumption—Cover interposer CI5040
    400 W or less—Ring Binder RB5020
    623 W or less—Perfect Binder GB5010
    240 W or less—Multi-purpose folding unit FD5020
    132 W or less—High-capacity stacker SK5040
    Warm-up time 540 seconds or less—mainframe
    380 seconds or less—Perfect Binder GB5010
    Sound power level Mainframe
    67.5 dB—standby
    80 dB—operating
    Emission levels

    Colour mode
    Less than 0.01 mg/h—benzene
    0.7 mg/h or less—dust
    9.1 mg/h or less—ozone
    0.13 mg/h or less—styrene

    Black and white mode
    Less than 0.01 mg/h—benzene
    0 mg/h or less—dust
    3.1 mg/h—ozone
    0.08 mg/h or less—styrene
    Total Volatile Organic Compounds (TVOC) 0.8 mg/h—ready mode
    3.0 mg/h—operating mode
    Reduction of environmentally sensitive materials RoHS
    100% lead-free solder used in PCBs—lead
    0%—PVC
    100% chrome-free steel plates—hexavalent chromium
    0%—cadmium
    0%—PBB/PBDE
    Energy saving standards

    Energy Star v2.0—with EFI Fiery controller
    Safety standards EN60950-1
    IEC60950-1
    Electromagnetic Compatibility (EMC) standards EN55032 Class A
    EN61000-3-2, EN61000-3-3
    EN55024
    EN301489-1, EN301489-3, EN301489-17
    EN62311
    EN50364
    Identification of plastic components All plastic components that weigh more than 25 g are identified in accordance with ISO 11469 standards.
    Laser standards EN60825-1
    IEC60825-1
    Wireless LAN standards EN300328
    EN300330

Related products

  • Pro C5300S

    Pro C5300S

    Colour production printer
    – Prints up to 65 ppm
    – Up to 360 g/m2 duplex
    – Up to 13″ x 19.2″ paper size
    – High-end finishers

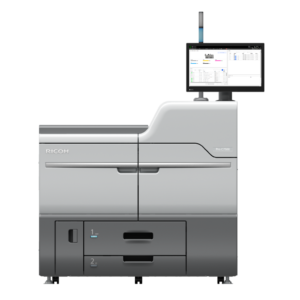

  • Pro C7500
    New!

    Pro C7500

    Colour production printer
    – Upgradeable to 95 ppm
    – 40–470 g/m2
    – 16,200-sheet max input
    – Optional special colour printing

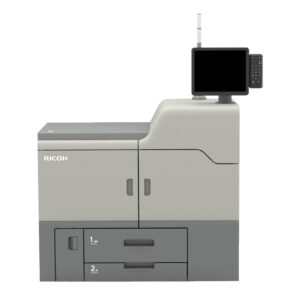

  • Pro C7200

    Pro C7200

    Colour production printer
    – Prints up to 85 ppm
    – Up to 360 g/m2
    – 16,200-sheet max input
    – Banner sheet duplex printing

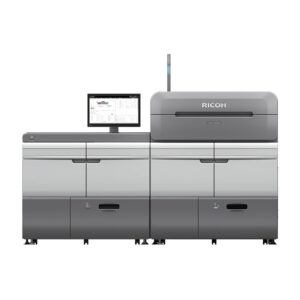

  • Pro C9500
    New!

    Pro C9500

    Colour production printer
    – Upgradeable to 135 ppm
    – 40–470 g/m2
    – 18,100-sheet max input
    – RICOH GC OS controller

Scroll to Top
