Pro C7500

Pro C7500

Pro C7500

Colour production printer
– Upgradeable to 95 ppm
– 40–470 g/m2
– 16,200-sheet max input
– Optional special colour printing



Category: Tag:
Download Brochure
Configure

The Pro C7500 is a medium volume digital colour production printer.

It comes with a base print speed of 85 ppm that can be upgraded to 95 ppm by purchasing an optional productivity upgrade unit.

Additionally, its standard 4-station toner configuration can be upgraded to include a 5th station for special colour printing. A choice of clear, white, neon yellow, neon pink, invisible red, silver, or gold toner is available for the 5-station configuration.

The Pro C7500 comes with the RICOH GC OS controller that is specially designed for commercial printing environments and can be utilised with the Color Controller N-50A or Color Controller N-70A mandatory options.

An EFI 5th Station Hardware Upgrade Kit is required to activate the special colour features on these optional controllers if customers choose the 5-station configuration.

Other notable features are a larger 21.5” operation panel, 40–470 g/m2 paper handling, up to 960 mm continuous duplex banner sheet printing, and support for new options such as an improved vacuum-feed LCT and multi-folding unit.

Overview

Application

Quality

Performance

Finishing

Cover Interposers

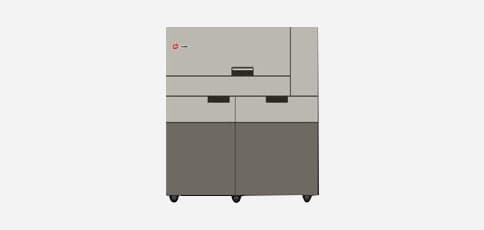

Plockmatic High Capacity Interposer HCI3500

The Plockmatic High Capacity Interposer enables the automatic and inline insertion of a wide range of paper stocks up to 350 gsm within a single booklet. Vacuum feed technology ensures that thicker stocks are fed smoothly every time. Take advantage of two trays with 3,500-sheet total paper capacity and insert color covers and inserts in black and white runs.

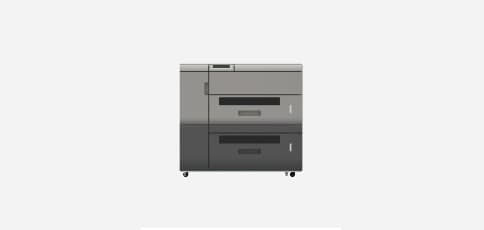

Cover Interposer Tray CI5040

The Cover Interposer Tray allows pre-printed covers and inserts to be easily fed into the finishing workflow from two sources. This option eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals.|Supports paper sizes up to 13″ × 19.2″ and media up to 130 lb. Cover (350 gsm).|Weight: 110 lbs. (50 kg)|W × D × H (inches): 13 × 28.7 × 50.8|W × D × H (mm): 330 × 729 × 1,290

Paper Handling

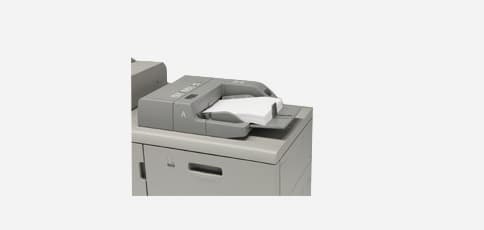

Multi Bypass Tray BY5020

Feeds up to 500 sheets of uncoated paper stocks for expanded system capacity and document output types. Support for stocks up to 13″ x 19.2″ in size and up to 80 lb. Cover (216 gsm) in weight.|Weight: 44 lbs. (20 kg)|W × D × H (inches): 27.2 × 22.1 × 8.3|W × D × H (mm): 691 × 561 × 211

Stackers

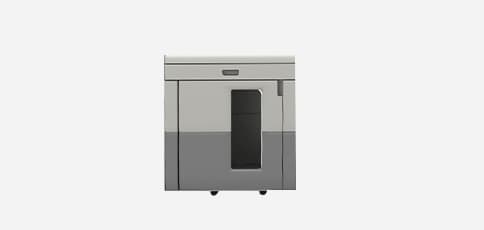

High Capacity Stacker SK5040

For stacking up to 5,000 sheets of paper. Up to two stackers can be configured per engine.

Plockmatic MPS Oversize Sheet Stacker

Neatly stacks oversized output up to 49.6″, reducing labor and ensuring sheets stay flat before finishing.

Sheet Finishers

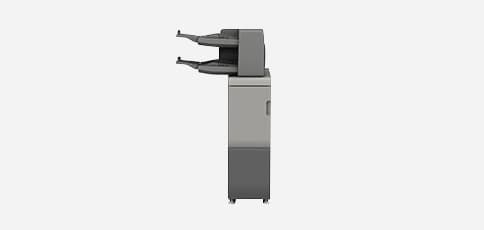

4,500 Sheet Finisher SR5110

The SR5110 offers multi-position staple finishing of up to 100 sheets for 8.5″ x 11″ sized media or 50 sheets for 11″ x 17″ sized media. The unit also offers stacking of up to 4,500 sheets (dual shift tray) with 4 staple options (top, bottom, 2 staples and top-slant). Two and three hole punch is available as an optional accessory.

Booklet Makers

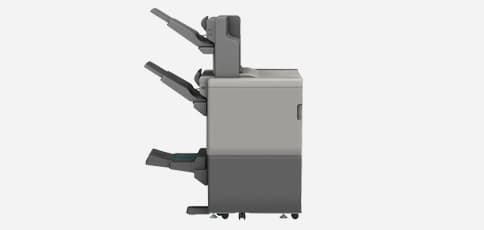

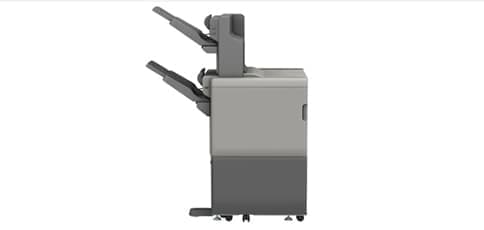

Booklet Finisher SR5120

The SR5120 offers multi-position staple finishing of up to 100 sheets for 8.5″ x 11″ sized media or 50 sheets for 11″ x 17″ sized media. The unit also offers stacking of up to 3,500 sheets (dual shift tray) with 4 staple options (top, bottom, 2 staples and top-slant). Two and three hole punch is available as an optional accessory.

Plockmatic PBM350e

The PBM350e can staple and fold up to 35 sheets, which creates booklets of up to 140 pages.|Simple fold only.|Weight: 297 lbs. (135 kg)|Power Requirements: 120V, 50/60Hz, 15A|W × D × H (inches): 55.9 × 35.4 × 27.6|W × D × H (mm): 1,420 × 899 × 701

Cutters/Trimmers

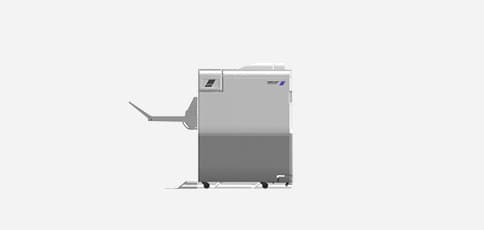

Trimmer Unit TR5050

Trims the “creep” side of a saddle-stitched booklet for professional looking booklets. Trims up to 30 sheets based on 20 lb. Bond, equivalent to an 120-page book.|Weight: 165.3 lbs. (75 kg)|Power Requirements: 120V, 50/60Hz, 15A|W × D × H (inches): 30.7 × 23.3 × 21.9|W × D × H (mm): 780 × 592 × 556

Other

GBC StreamWire

A fully automated inline binding system for creating twin loop wire-bound booklets. StreamWire Spools are available in 3 Colors (Black, White and Silver) and in 5 different sizes.



Specification



  • Configuration
    Functions Print
    Colour Yes
    Printer controller - standard RICOH GC OS
    Printer controller - optional Color Controller N-50A
    Color Controller N-70A
    Operation panel 21.5" Full HD touchscreen
  • Physical dimensions
    Physical dimensions (WxDxH)—mainframe 1,320 x 910 x 1,218 mm
    Physical dimensions (WxDxH)—other 1,320 x 910 x 1,816 mm—mainframe with Attention Light
    495 x 530 x 175 mm—A3/11"x 17" Tray Unit TK5010 (internal)
    1,054 x 730 x 1,000 mm—Vacuum-Feed LCIT RT5150
    1,290 x 730 x 1,000 mm—Vacuum-Feed LCIT RT5150 with Vacuum-Feed Banner Sheet Tray Type S9 attached
    1,519 x 730 x 1,000 mm—Vacuum-Feed LCIT RT5150 with Extension Vacuum-Feed Banner Sheet Tray Type S14 attached
    330 x 730 x 1,000 mm—Bridge Unit BU5010
    690 x 561 x 210 mm—Multi-Bypass Tray BY5020
    1,290 x 730 x 1,000 mm—Vacuum-Feed Banner Sheet Tray Type S9
    1,290 x 730 x 1,302 mm—Vacuum-Feed Banner Sheet Tray Type S9, with cover open
    1,519 x 730 x 1,000 mm—Extension Vacuum-Feed Banner Sheet Tray Type S14, when attached to Vacuum-Feed LCIT RT5150
    1,090 x 561 x 210 mm—Multi-Bypass Banner Sheet Tray Type S9, when attached to Multi-Bypass Tray BY5020
    730 x 1,220 x 1,090 mm—Plockmatic LCT3500 2.0
    1,688 x 1,286 x 950 mm—BDT VX 370-1280 Feeder
    330 x 730 x 1,010 mm—Buffer Pass Unit Type S9
    1,113 x 730 x 1,490 mm—Finisher SR5110
    1,334 x 730 x 1,622 mm—Finisher SR5110 with SR5000 Series Output Tray for Banner Sheet Type S6
    1,876 x 730 x 1,617 mm—Finisher SR5110 with Extension Output Banner Sheet Tray Type S14 (installed on the upper tray)
    1,926 x 730 x 1,617 mm—Finisher SR5110 with Extension Output Banner Sheet Tray Type S14 (installed on the lower tray)
    1,113 x 730 x 1,490 mm—Booklet Finisher SR5120
    1,334 x 730 x 1,622 mm—Booklet Finisher SR5120 with SR5000 Series Output Tray for Banner Sheet Type S6
    1,876 x 730 x 1,617 mm—Booklet Finisher SR5120 with Extension Output Banner Sheet Tray Type S14 (installed on the upper tray)
    1,926 x 730 x 1,617 mm—Booklet Finisher SR5120 with Extension Output Banner Sheet Tray Type S14 (installed on the lower tray)
    1,115 x 591 x 555 mm—Trimmer Unit TR5050
    740 x 730 x 1,350 mm—Cover Interposer CI5040
    209 x 730 x 1,000 mm—Multi-Folding Unit FD5030
    900 x 730 x 1,010 mm—High-Capacity Stacker SK5040
    1,200 x 700 x 1,100 mm—Plockmatic High-Capacity Stacker HCI3500
    900 x 680 x 1,060 mm—Plockmatic Multi-Purpose Stacker MPS1260
    1,420 x 700 x 970 mm—Plockmatic PBM 5035S/PBM 5035, including stacker
    Weight—mainframe 590 kg or less—4-station; 610 kg or less—5-station
    Weight—other 10 kg or less—A3/11"x 17" Tray Unit TK5010
    230 kg or less—Vacuum-Feed LCIT RT5150
    40 kg or less—Bridge Unit BU5010
    20 kg or less—Multi-Bypass Tray BY5020
    9 kg or less—Vacuum-Feed Banner Sheet Tray Type S9
    23 kg or less—Extension Vacuum-Feed Banner Sheet Tray Type S14
    9.5 kg or less—Multi-Bypass Banner Sheet Tray Type S9
    250 kg—Plockmatic LCT3500 2.0
    443 kg—BDT VX 370-1280 Feeder
    90 kg or less—Buffer Pass Unit Type S9
    135 kg—Finisher SR5110
    160 kg—Booklet Finisher SR5120
    75 kg—Trimmer Unit TR5050
    60 kg—Cover Interposer CI5040
    45 kg or less—Multi-Folding Unit FD5030
    131 kg or less—High-Capacity Stacker SK5040
    135 kg or less—High-Capacity Stacker SK5040 with roll-away cart
    250 kg—Plockmatic High-Capacity Stacker HCI3500
    65 kg—Plockmatic Multi-Purpose Stacker MPS1260 lift unit
    5 kg—Plockmatic Multi-Purpose Stacker MPS1260 docking unit
    Minimum space requirements 1,000 mm—front
    1,000 mm—left
    1,000 mm—right
    800 mm—rear
  • Reliability
    Max monthly volume 240,000 prints
    Machine life 14,400,000 prints or 5 years, whichever comes first
    Duty cycle 1,500,000 prints—85 ppm; 1,700,000 prints—95 ppm
  • Supply yields
    Supply yields

    67,000 sheets—black
    67,000 sheets—cyan
    67,000 sheets—magenta
    67,000 sheets—yellow
    19,000 sheets—white
    29,200 sheets—neon yellow
    29,200 sheets—neon pink
    21,500 sheets—invisible red
    22,500 sheets—gold
    22,500 sheets—silver

    Note:CMYK and gold toner yields are measured with the A4/8.75% coverage chart with 50 pages per job. White neon yellow, neon pink, invisible red, and silver toner yields are measured with the A4/15% coverage chart with 50 pages per job.

    136,000 sheets per waste toner bottle

    Note:Waste toner bottle yield based on A4/8.75% coverage chart with 50 pages per job, 80% colour ratio.

    5,000 staples per Type X cartridge for Finisher SR5110 and Booklet Finisher SR5120—side staple
    5,000 staples per Type U cartridge for Booklet Finisher SR5120—saddle stitch staple
    5,000 staples per Type X refill cartridge for Finisher SR5110 and Booklet Finisher SR5120—side staple
    5,000 staples per Type T refill cartridge for Booklet Finisher SR5120—saddle stitch staple
  • Media Handling
    Standard input capacity (sheets) 2,500
    Maximum input capacity (sheets) 16,200
    Maximum output capacity (sheets) 13,000
    Paper input configuration - standard 1,000-sheet x 2 paper input tray 1, 500-sheet paper input tray 2, 500-sheet bypass tray, duplex unit
    Paper input configuration - optional 1,000-sheet A3/11"x 17" Tray Unit TK5010, 4,400-sheet Vacuum-Feed LCIT RT5150, Bridge Unit BU5010, 500-sheet Multi-Bypass Tray BY5020, 730-sheet Vacuum-Feed Banner Sheet Tray Type S9, 500-sheet Extension Vacuum-Feed Banner Sheet Tray Type S14, 500-sheet Multi-Bypass Banner Sheet Tray Type S9, 3,500-sheet Plockmatic LCT3500, BDT VX 370-1280 Feeder
    Paper output configuration - optional Buffer Pass Unit Type S9, Multi-Folding Unit FD5030, High-Capacity Stacker SK5040, 3,500-sheet Booklet Finisher SR5120, 4,500-sheet Finisher SR5110, Punch Unit PU5030, Trimmer Unit TR5050 for Booklet Finisher SR5120, 400-sheet Cover Interposer CI5040
    Paper output configuration - 3rd Party GBC e-Wire, GBC StreamPunch Plus, Plockmatic HCI3500 High-Capacity Interposer,Plockmatic CT XL, PlockmaticPBM350e, Plockmatic MPS1260 Multi-Purpose Stacker, Plockmatic PBM5035S long sheet stitcher, Plockmatic 5035 long sheet stapler,Plockmatic SBT (Square Back Trimmer),Plockmatic RCT v.3.0
    Supported media

    Standard paper input tray 1
    Plain, Recycled, Prepunched Paper, Textured Paper

    Standard paper input tray 2
    Plain, Recycled, Prepunched Paper, Transparency, Tab Stock, Translucent Paper, Textured Paper

    Bypass tray
    Plain, Recycled, Prepunched Paper, Transparency, Tab Stock, Translucent Paper, Envelope

    Note:High Gloss, Coated: Glossy, Coated: Matte, Textured Paper, and Synthetic Paper can be fed but quality is not guaranteed.

    OptionalA3/11"x 17" Tray Unit
    Plain, Recycled, Prepunched Paper, Textured Paper

    Optional Vacuum-Feed LCIT RT5150
    Plain, Recycled, Prepunched Paper, Transparency, Tab Stock, Translucent Paper, Label Paper, Coated: High Gloss, Coated: Glossy, Coated: Matte, Envelope, Textured Paper, Tab Stock: Glossy, Tab Stock: Matte, Tab Stock: High Gloss, Envelope: Glossy, Envelope Matte, Envelope: High Gloss, Carbonless Paper

    Note:Magnetic Paper, Metallic/Pearl Paper, Clear File Folder, and Synthetic Paper can be fed but quality is not guaranteed.

    Optional banner sheet tray
    Plain, Recycled, Prepunched Paper, Coated: High Gloss, Coated: Glossy, Coated: Matte, Textured Paper, Carbonless Paper

    Note:Magnetic Paper, Label Paper, Transparency, Metallic/Pearl Paper, Clear File Folder, and Synthetic Paper can be fed but quality is not guaranteed.
    Maximum paper size 330.2 x 1,260 mm
    Media weight (g/m2) 40–470
  • Connectivity
    Interfaces - standard 10Base-T/100Base-Tx (Ethernet) 1000Base-T (Gigabit Ethernet)—for TotalFlow Advisor connection 2.5GBase-T—for Fiery controller connection SD slot x 2— for maintenance only USB 3.0 x 4, USB 2.0 x 2
    Interfaces - optional With Color Controller N-50A 10Base-T/100Base-Tx (Ethernet) 1000Base-T (Gigabit Ethernet) USB 2.0 x 4—rear USB 3.0 x 5—2 ports on the rear, 3 ports on the Fiery Quick Touch operation panel With Color Controller N-70A 10Base-T/100Base-Tx (Ethernet) 1000Base-T (Gigabit Ethernet) USB 3.0 x 7—rear USB 3.0 x 4 ports, x3 ports on the Fiery Quick Touch operation panel
    Network protocols - standard TCP/IP (IPv4, IPv6)
    Network protocols - optional With Color Controller N-50A/N-70A Windows—TCP/IP Mac—TCP/IP, EtherTalk (for font download), Bonjour
  • Print features
    Print speed colour 85 ppm—A4 LEF
    49 ppm—A3 SEF

    With optional Productivity Upgrade Unit Type S14
    95 ppm—A4 LEF
    53 ppm—A3 SEF
    Print speed black and white 85 ppm—A4 LEF
    49 ppm—A3 SEF

    With optional Productivity Upgrade Unit Type S14
    95 ppm—A4 LEF
    53 ppm—A3 SEF
    Printing process 4-drum or 5-drum dry electrostatic transfer system with internal transfer belt
    Printing technology Vertical-cavity surface-emitting laser (VCSEL)
    Fusing Oil-less belt-fusing method
    Toner development PXP-EQ chemical toner, polymerisation
    Print resolution 2,400 x 4,800 dpi
    Note:Engine print resolution is 1,200 x 4,800 dpi.
    Duplex printing Standard
    Envelope printing Supported—with optional Vacuum-Feed LCIT RT5150
    Maximum printable area 320 x 480 mm
    323 x 1,252 mm—with optional banner sheet tray
    Optional printer controller Color Controller N-50A and Color Controller N-70A

    System
    Fiery FS500 Pro

    Base operating system
    Windows 10 IoT Enterprise 2019 LTSC

    CPU
    Intel i5-8500—N-50A
    Intel Xeon 4214 (Silver)—N-70A

    HDD
    256 GB SSD SATA for OS; 1 TB HD SATA for data—N-50A
    480 GB SSD SATA for OS; 2 TB HD x 2 SATA for data—N-70A

    Memory (RAM)
    8 GB—N-50A
    32 GB—N-70A

    Interfaces
    Gigabit cross cable
    Ricoh data transfer unit cable
  • Security features
    Other security features The OneDFE controller security is based on the EFI Fiery security policy that is compliant with the FS500 Pro system. Contact your local sales company for more information.
  • Software and solutions
    Standard @Remote
    TotalFlow Adviser
    Optional InfoPrint Manager
    Ricoh ProcessDirector
    TotalFlow Prep
    TotalFlow Production Manager
    TotalFlow BatchBuilder
    RICOH Supervisor
    TotalFlow Producer
    FusionPro VDP Creator
    FusionPro Expression
    Ricoh Auto Color Adjuster
    OL PlanetPress Connect
    Fiery Workflow Suite
  • Environmental features
    Power source 220–240 V, 16 A, 50/60 Hz
    Power consumption 4,800 W or less—maximum power
    35 W or less—Energy Saver Mode (Sleep Mode)
    Power consumption—options 1,000 W or less—4,400-sheet Vacuum-Feed LCIT RT5150
    200 W or less—Buffer Pass Unit Type S9
    60 W or less—Multi-Folding Unit FD5030
    150 W or less—Finisher SR5110
    150 W or less—Booklet Finisher SR5120
    250 W or less, maximum—Trimmer Unit TR5050
    75 W or less, average—Trimmer Unit TR5050
    110 W excluding peak consumption—Cover Interposer CI5040
    Warm-up time 300 seconds or less
    Note:Based on 23C˚, rated voltage, and full options.
    Sound power level

    Mainframe
    58.5 dB or less—standby
    78.5 dB or less—operating

    System
    61 dB or less—standby, 85 ppm
    64 dB or less—standby, 95 ppm
    81.5 dB or less—operating
    Reduction of environmentally sensitive materials RoHS
    Less than 0.1 wt%—Lead, PVC, Hexavalent chromium, Cadmium, PBB/PBDE, DEHP, DBP, BBP, DIBP
    Energy saving standards Energy Star 3.2—with OneDFE controller
    Safety standards EN60950-1
    IEC60950-1
    KC 62368-1
    CNS 15998-1
    Electromagnetic Compatibility (EMC) standards EN55032 Class A
    EN61000-3-2
    EN61000-3-3
    EN55035
    EN62311
    KS C 9832
    KS C 9835
    KS C 9610-4-2
    KS C 9610-4-3
    CNS15936 Class A
    Identification of plastic components All plastic components that weigh more than 100 g are identified in accordance with ISO 11469 standards.
    Laser standards EN60825-1
    IEC60825-1
